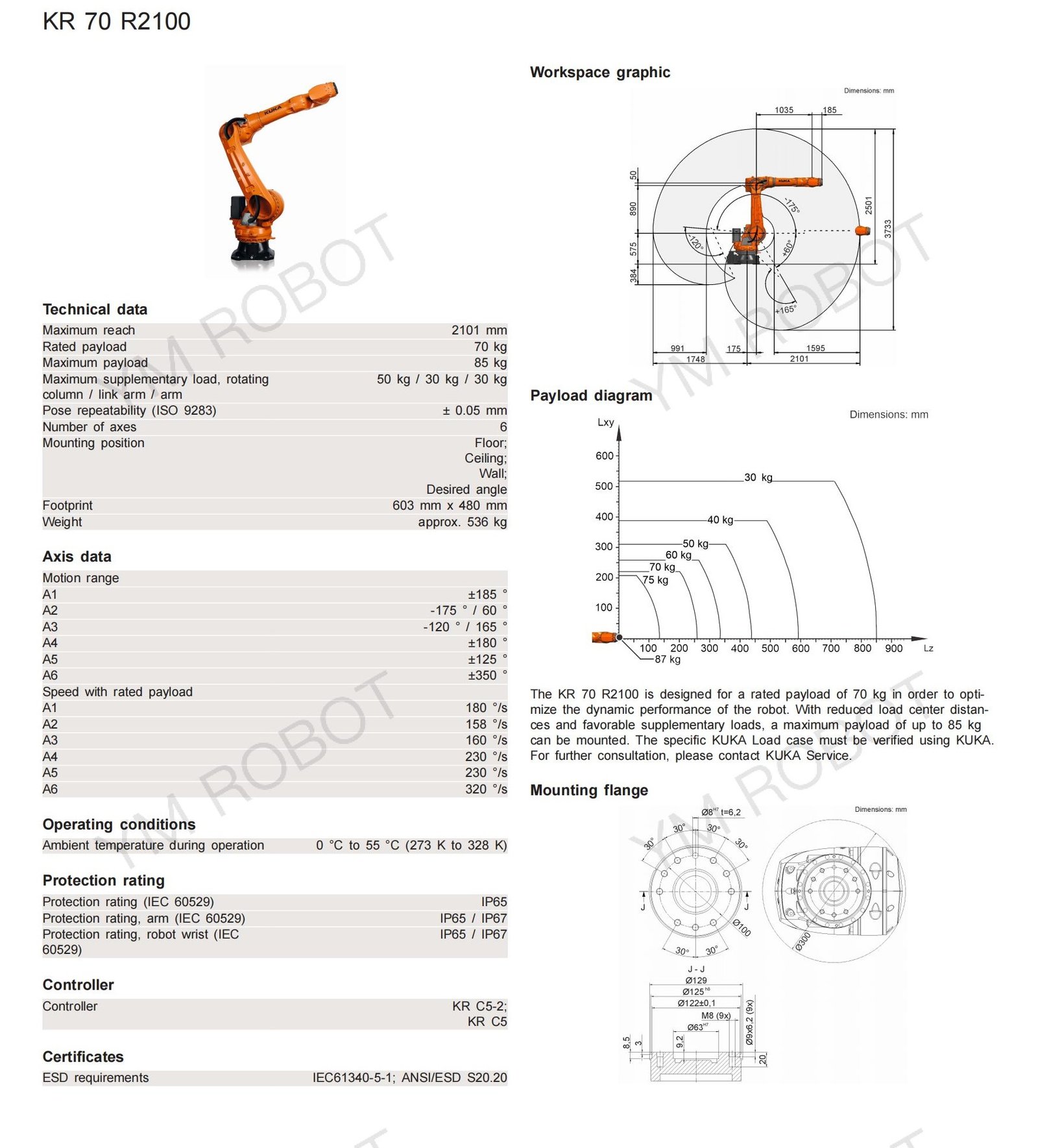

KR 70 R2100

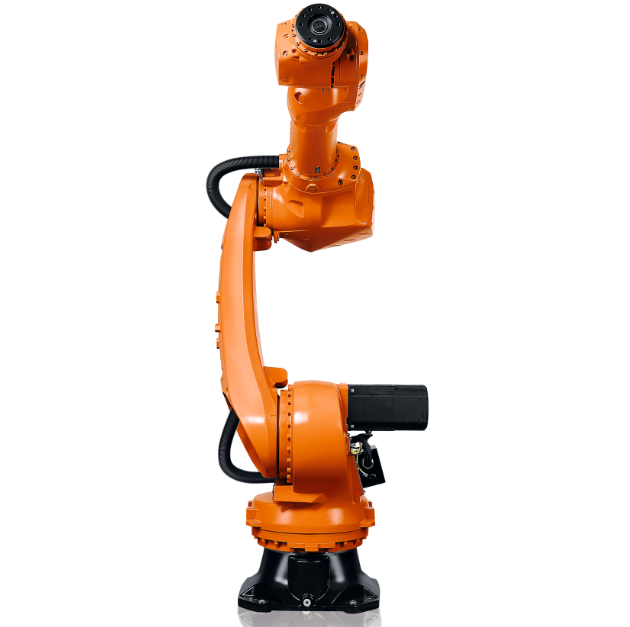

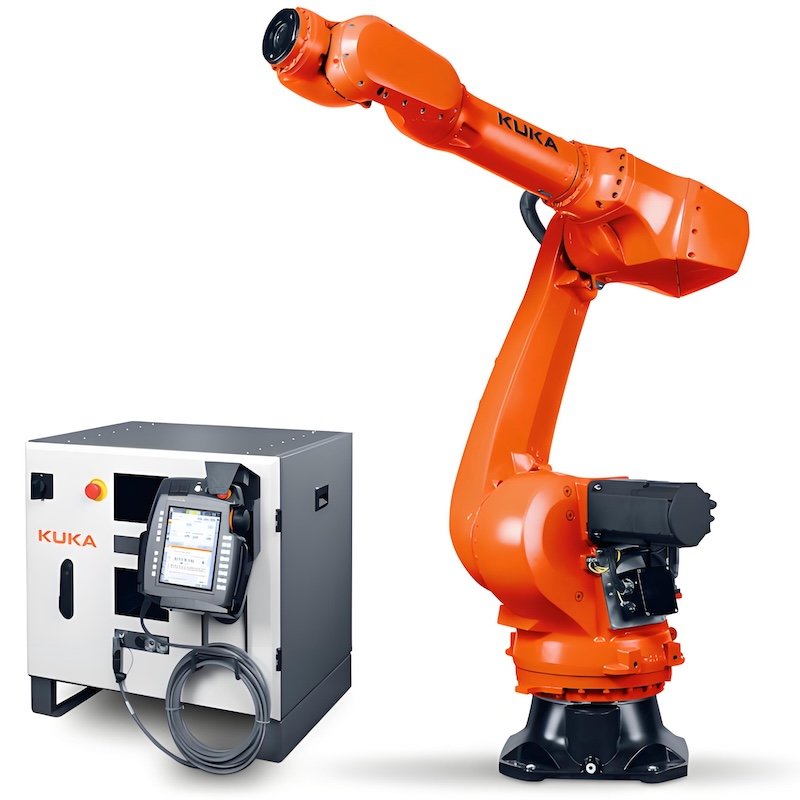

KR IONTEC
Opting for KR IONTEC signifies selecting a highly versatile robot that excels with the best working range in its class and offers flexible installation options, suitable for a broad array of applications handling payloads from 20 to 70 kilograms. KR IONTEC: A Robot Designed for Diverse Applications in the Medium Load Range Whether installed on the floor, mounted on the wall, or positioned at an angle, KR IONTEC merges a compact design with the largest operational range among its peers, maximizing space efficiency despite its small stature. Fitted with a waterproof and dustproof direct-connect wrist and protected motors, this robot is nearly universally applicable. Its casting option further allows it to function in extreme high-temperature conditions, within an extended temperature tolerance of 0° to 55°C.
| Technical data | Axis data | ||||
| Maximum reach | 2101 mm | Motion range | Speed with rated payload | ||
| Rated payload | 70 kg | A1 | ±185 ° | A1 | 180 °/s |
| Maximum payload | 85 kg | A2 | -175 ° / 60 ° | A2 | 158 °/s |
| Maximum supplementary load, rotating column / link arm / arm | 50 kg/30 kg/30 kg | A3 | -120 ° / 165 ° | A3 | 160 °/s |
| Pose repeatability (ISO 9283) | ± 0.05 mm | A4 | ±180 ° | A4 | 230 °/s |
| Number of axes | 6 | A5 | ±125 ° | A5 | 230 °/s |
| Mounting position | Floor；Ceiling; Wall; Desired angle | A6 | ±350 ° | A6 | 320 °/s |
| Footprint | 603 mm x 480 mm | ||||
| Weight | approx. 536 kg | ||||
