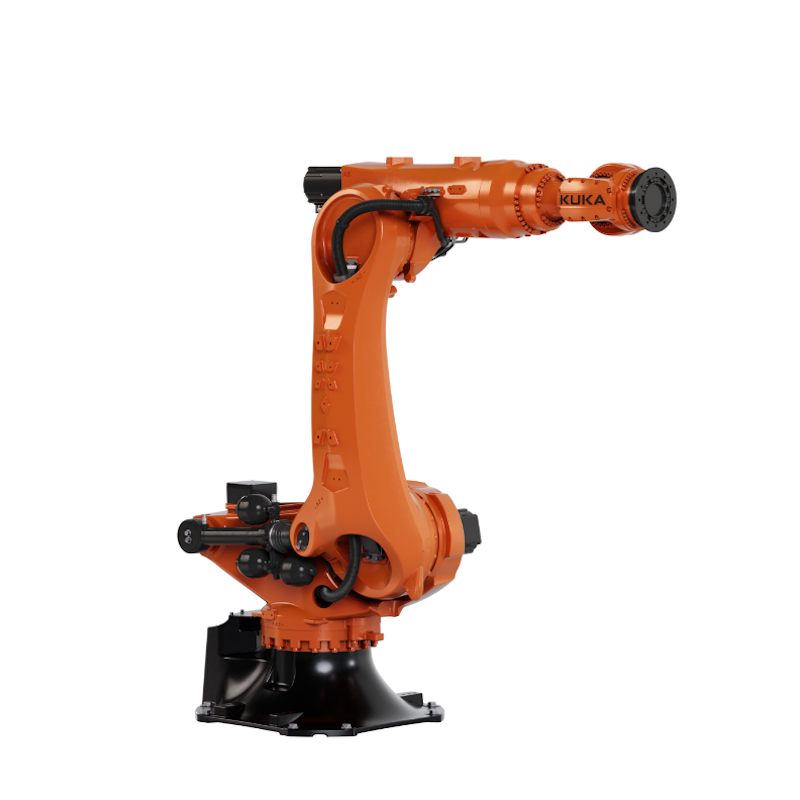

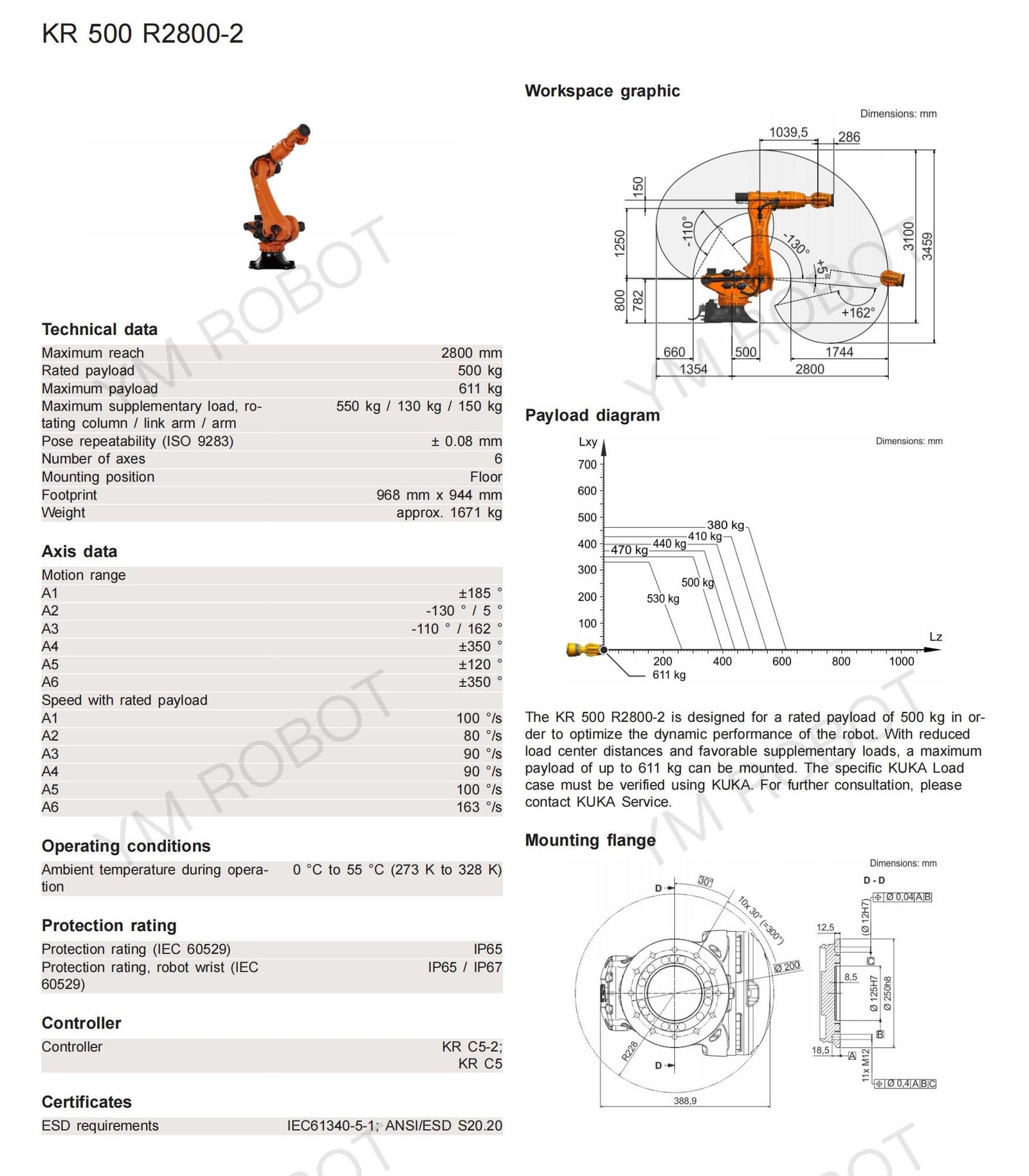

KR 500 R2800-2

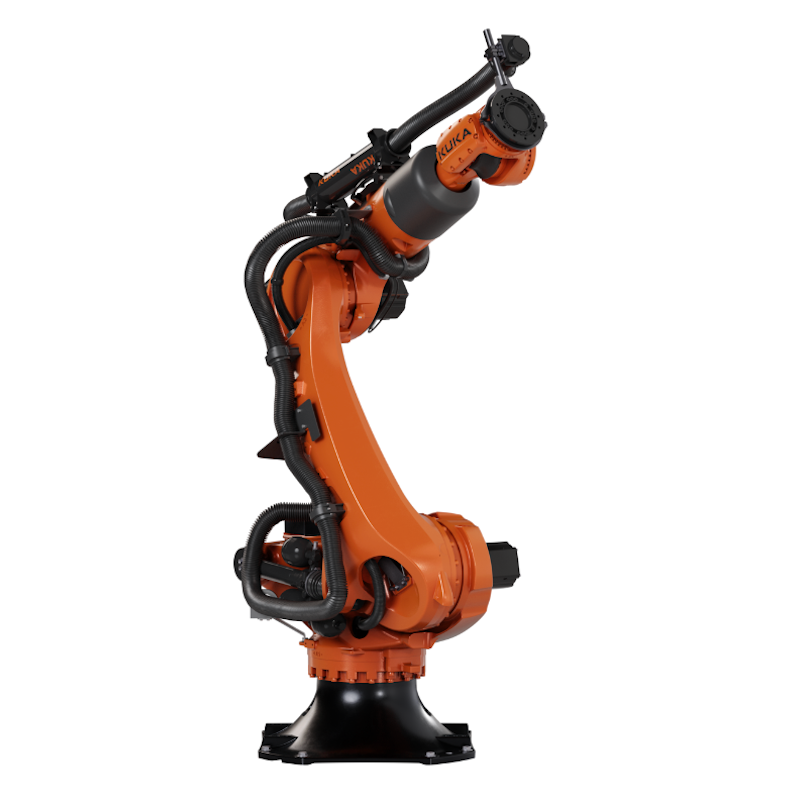

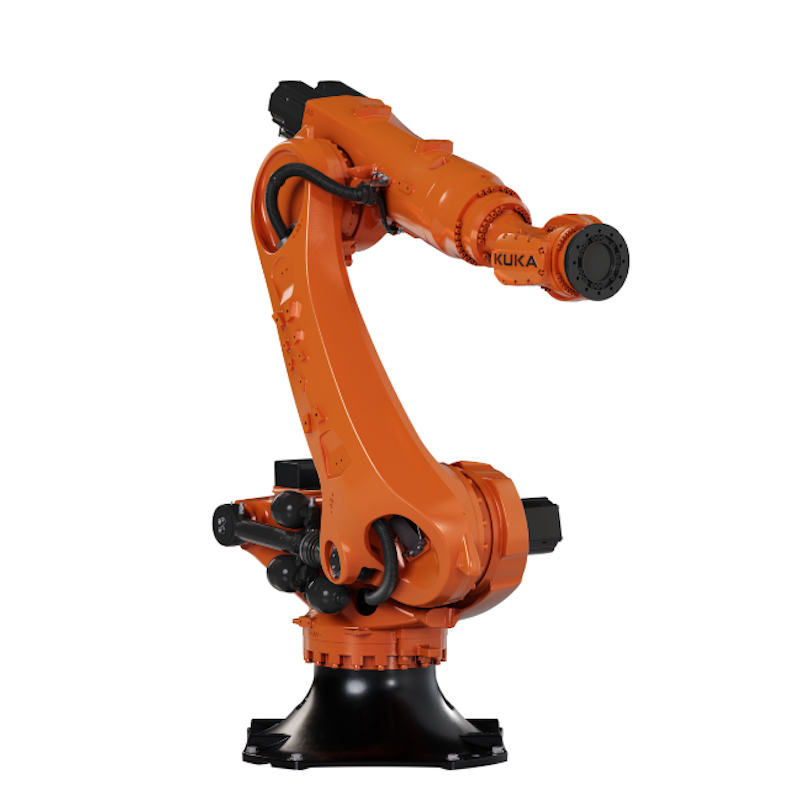

KR FORTEC
KR FORTEC is an all-rounder in our heavy-duty robot lineup. It is energy efficient and can dynamically handle heavy-duty applications up to 500 kg. Thanks to its adoption of our renowned industrial robot concept, it requires virtually no maintenance during operation. This makes the robot extremely reliable in your production.
High operability and cost-effective operation
The new KR FORTEC is flexibly expandable, energy-efficient, and requires minimal maintenance. With its payload capacity, this robot seamlessly integrates with KR QUANTEC and KR FORTEC Ultra, complementing KUKA's product portfolio. It is designed for the automotive industry and general industrial sectors. With KR FORTEC, you can standardize high-quality production processes through automated material handling. The robot's low total cost of ownership (TCO) also contributes to improved cost-effectiveness in production processes.
| Technical data | Axis data | ||||
| Maximum reach | 2800 mm | Motion range | Speed with rated payload | ||
| Rated payload | 500 kg | A1 | ±185 ° | A1 | 100 °/s |
| Maximum payload | 611 kg | A2 | -130 ° / 5 ° | A2 | 80 °/s |
| Maximum supplementary load, rotating column / link arm / arm | 550 kg / 130 kg / 150 kg | A3 | -110 ° / 162 ° | A3 | 90 °/s |
| Pose repeatability (ISO 9283) | ± 0.08 mm | A4 | ±350 ° | A4 | 90 °/s |
| Number of axes | 6 | A5 | ±120 ° | A5 | 100 °/s |
| Mounting position | Floor | A6 | ±350 ° | A6 | 163 °/s |
| Footprint | 968 mm x 944 mm | ||||
| Weight | approx. 1671 kg | ||||
