KR 1000 titan
KR 1000 titan
KR 1000 titan is a powerful robot specifically designed for heavy-duty tasks. This six-axis robot can safely and precisely handle extremely heavy parts and components, even over long distances.

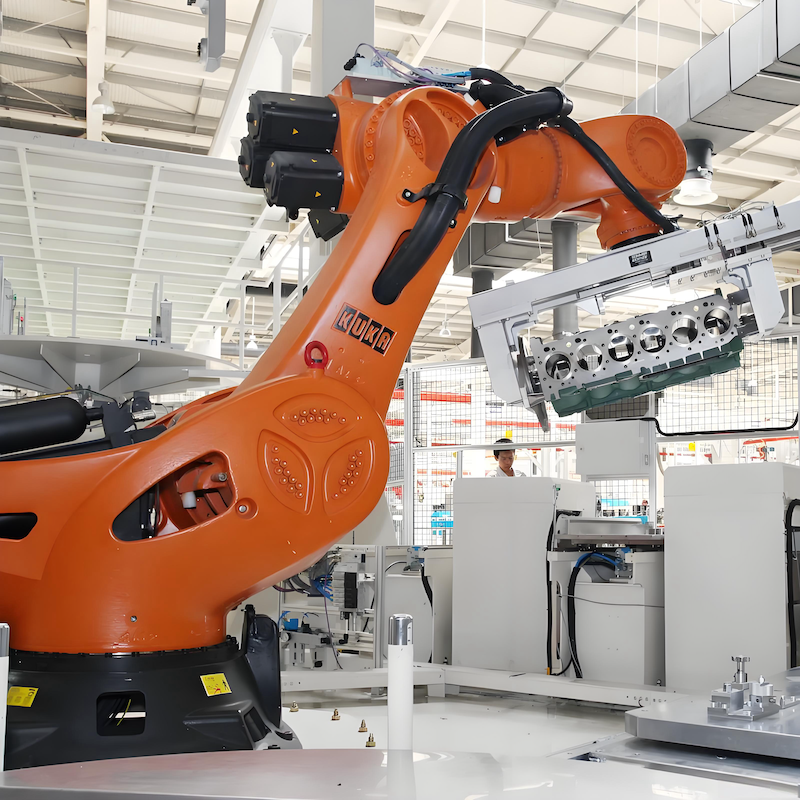

The KR 1000 titan is the first six-axis robot featuring an open kinematics system and exceptional payload capacity. It can precisely and swiftly transport heavy objects over distances of up to 6.5 meters. Engine blocks, stone blocks, glass, steel beams, ship and aircraft components, marble blocks, prefabricated concrete components - all these heavy objects are effortlessly handled by the KR 1000 titan. For specific application areas, we offer a casting-dedicated version with the best arm reach/payload ratio, as well as a palletizing robot version designed for handling loads weighing up to 1.3 tons.

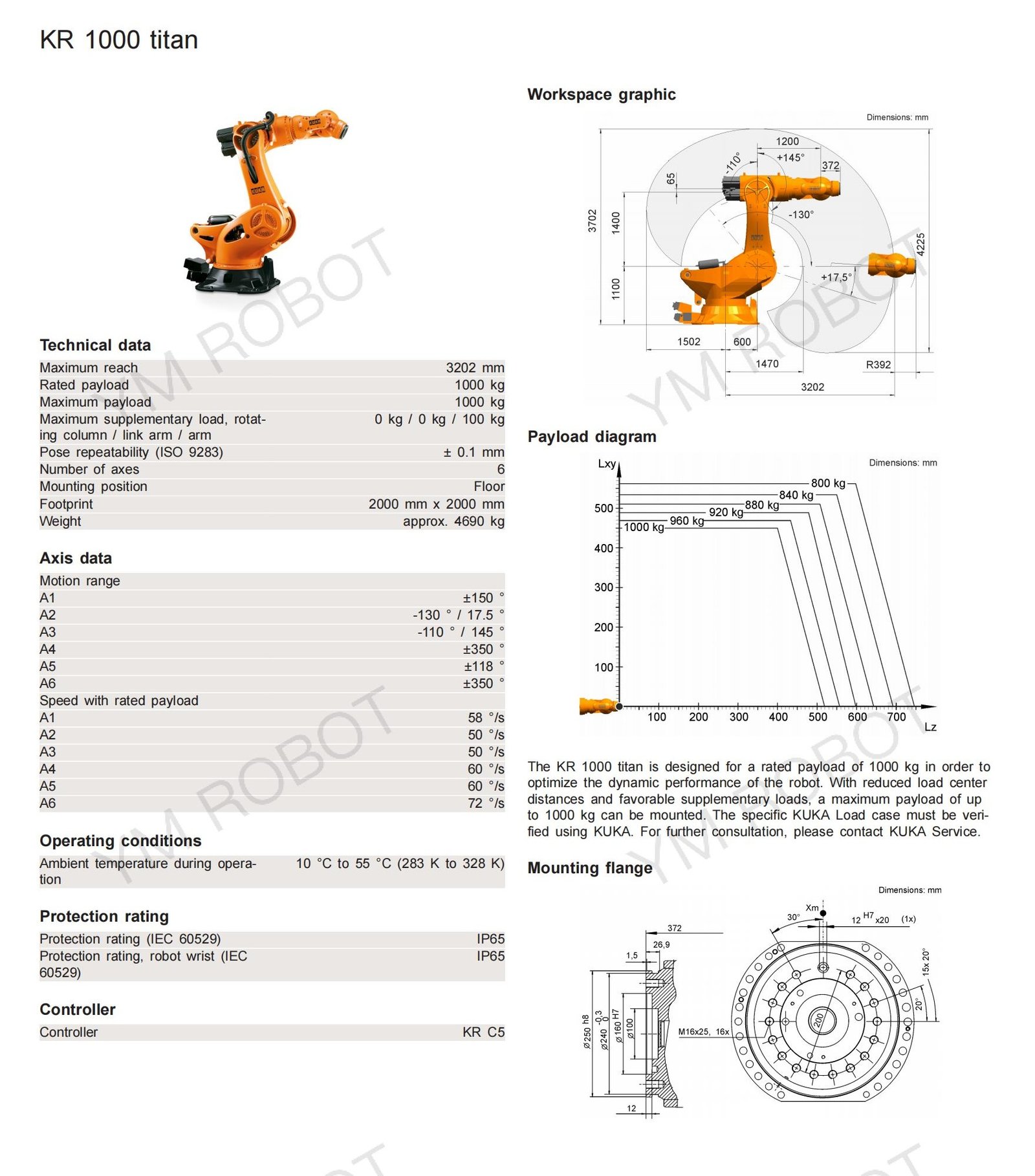

| Technical data | Axis data | ||||
| Maximum reach | 3202 mm | Motion range | Speed with rated payload | ||
| Rated payload | 1000 kg | A1 | ±150 ° | A1 | 58 °/s |
| Maximum payload | 1000 kg | A2 | -130 ° / 17.5 ° | A2 | 50 °/s |
| Maximum supplementary load, rotating column / link arm / arm | 0 kg / 0 kg / 100 kg | A3 | -110 ° / 145 ° | A3 | 50 °/s |
| Pose repeatability (ISO 9283) | ± 0.1 mm | A4 | ±350 ° | A4 | 60 °/s |
| Number of axes | 6 | A5 | ±118 ° | A5 | 60 °/s |
| Mounting position | Floor | A6 | ±350 ° | A6 | 72 °/s |
| Footprint | 2000 mm x 2000 mm | ||||
| Weight | approx. 4690 kg | ||||
