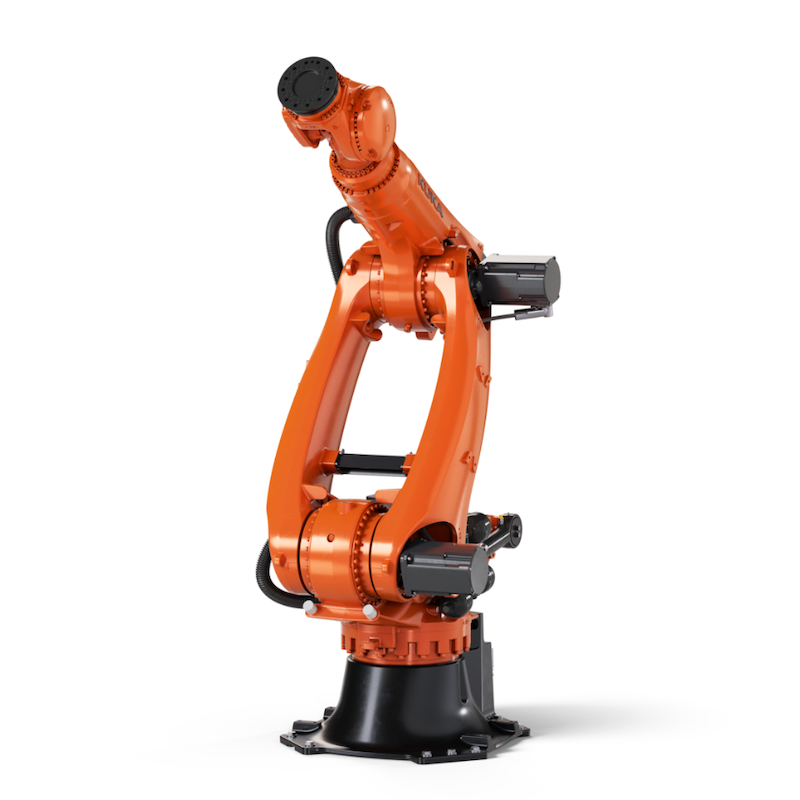

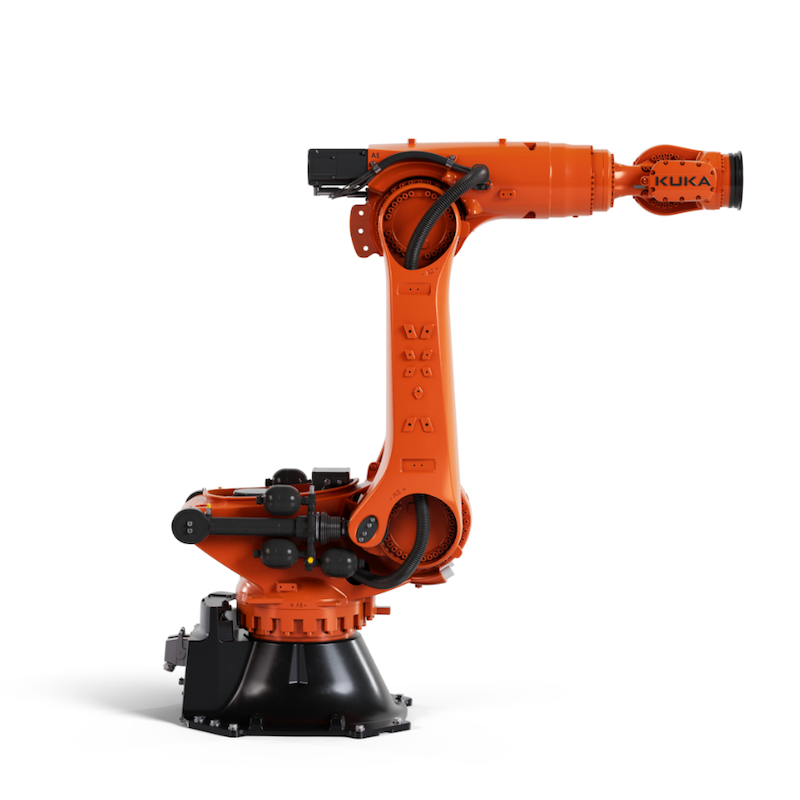

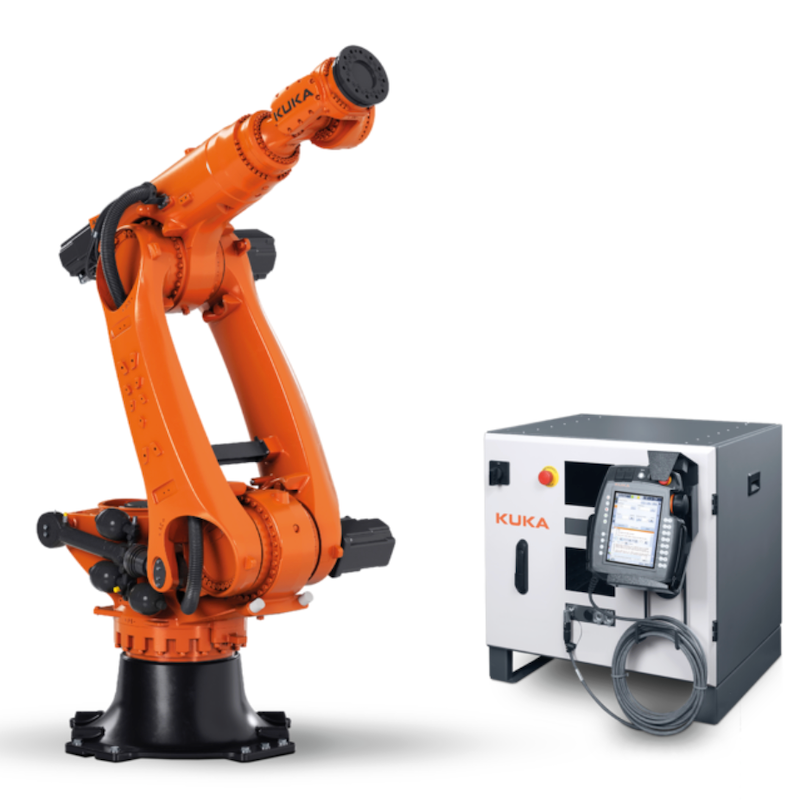

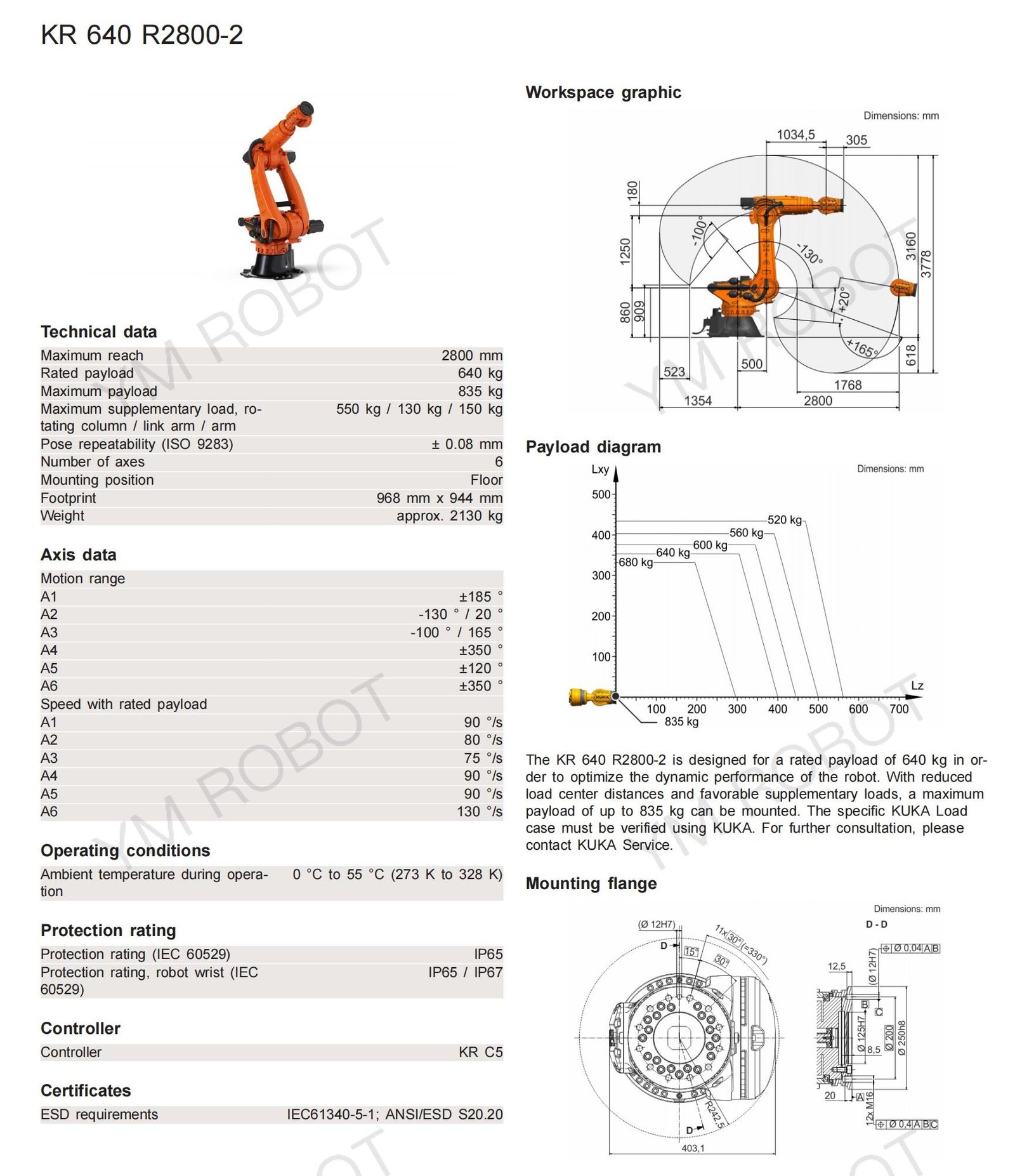

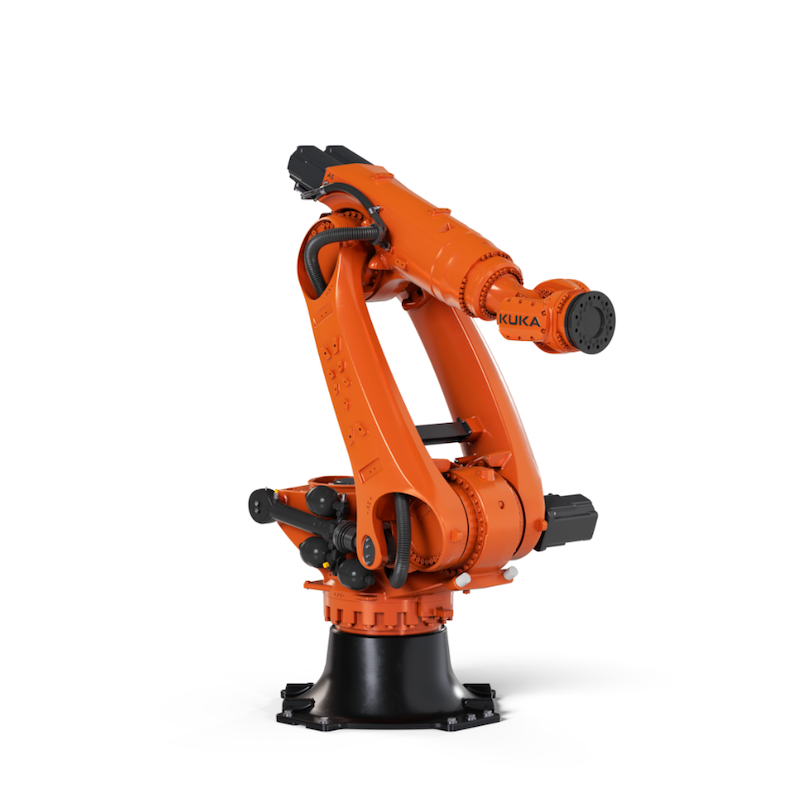

KR 640 R2800-2
KR FORTEC ultra
These heavy-duty robots, with payloads up to 800 kg, deliver optimal performance in the smallest possible space and can quickly and accurately handle large parts with high rotational inertia.
Developed specifically for handling heavy and large workpieces with high rotational inertia
From battery handling to gigabit-level casting. In production, as the rotational inertia of workpieces continues to increase, the demands on payload and operating range are also rising dramatically. KR FORTEC ultra robots are designed to meet these requirements with maximum efficiency and in the smallest possible space. As a concept of intelligent modularity and shared components, it allows for the selection of the best robot for a specific application and on-site adjustments. It leads the way in performance, cost-effectiveness, and flexibility, both now and in the future.
| Technical data | Axis data | ||||
| Maximum reach | 2800 mm | Motion range | Speed with rated payload | ||
| Rated payload | 640 kg | A1 | ±185 ° | A1 | 90 °/s |
| Maximum payload | 835 kg | A2 | -130 ° / 20 ° | A2 | 80 °/s |
| Maximum supplementary load, rotating column / link arm / arm | 550 kg / 130 kg / 150 kg | A3 | -100 ° / 165 ° | A3 | 75 °/s |
| Pose repeatability (ISO 9283) | ± 0.08 mm | A4 | ±350 ° | A4 | 90 °/s |
| Number of axes | 6 | A5 | ±120 ° | A5 | 90 °/s |
| Mounting position | Floor | A6 | ±350 ° | A6 | 130 °/s |
| Footprint | 968 mm x 944 mm | ||||
| Weight | approx. 2130 kg | ||||
