KR 150 R3100-2

Short Description:

KUKA Robot KR 150 R3100-2 Payload 150kg Reaching Distance 3100 mm...


  • Brand: KUKA
  • Model: KR 150 R3100-2
  • Payload: 150kg
  • Arm Reach: 3100 mm
  • Accuracy: ± 0.05 mm
  • Controlled Axes: 6
  • Weight: 1105 kg
  • Payment: T/T
  • Lead Time: 4-6 weeks

Product Detail

Product Tags

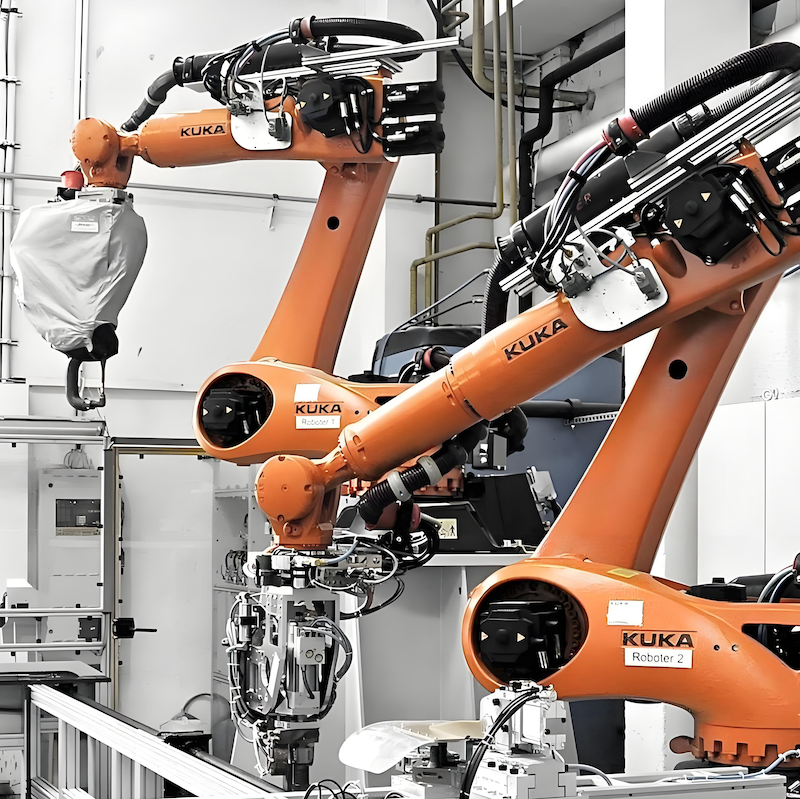

KR QUANTEC

The KR QUANTEC high-load robot product lineup, boasting the best arm reach and load capacity in its class, empowers customers to achieve success. Its versatile design renders it suitable for nearly all market sectors, spanning from automotive and foundry to medical, as well as every industry in between.

An optimized product portfolio for maximum flexibility and minimal total cost of ownership The KR QUANTEC product portfolio is crafted based on KUKA's decades-long automation expertise. The outcome: dependable, adaptable, efficient, and high-quality solutions tailored for your production environment.

KR QUANTEC robots offer unique and extensive application prospects, delivering outstanding performance, cost-efficiency, and flexibility, from which customers reap substantial benefits. A more streamlined modular system enables the creation of robots that are both flexible and precisely matched to specific tasks, ensuring swift delivery and a low total cost of ownership—primarily attributed to optimized maintenance and a reduced need for spare parts. This robot product portfolio also facilitates on-site load upgrades and achieves optimal process quality through motion patterns.

These software plugins transform the KR QUANTEC into a highly adaptable machine, safeguarding your future investments in production operations.

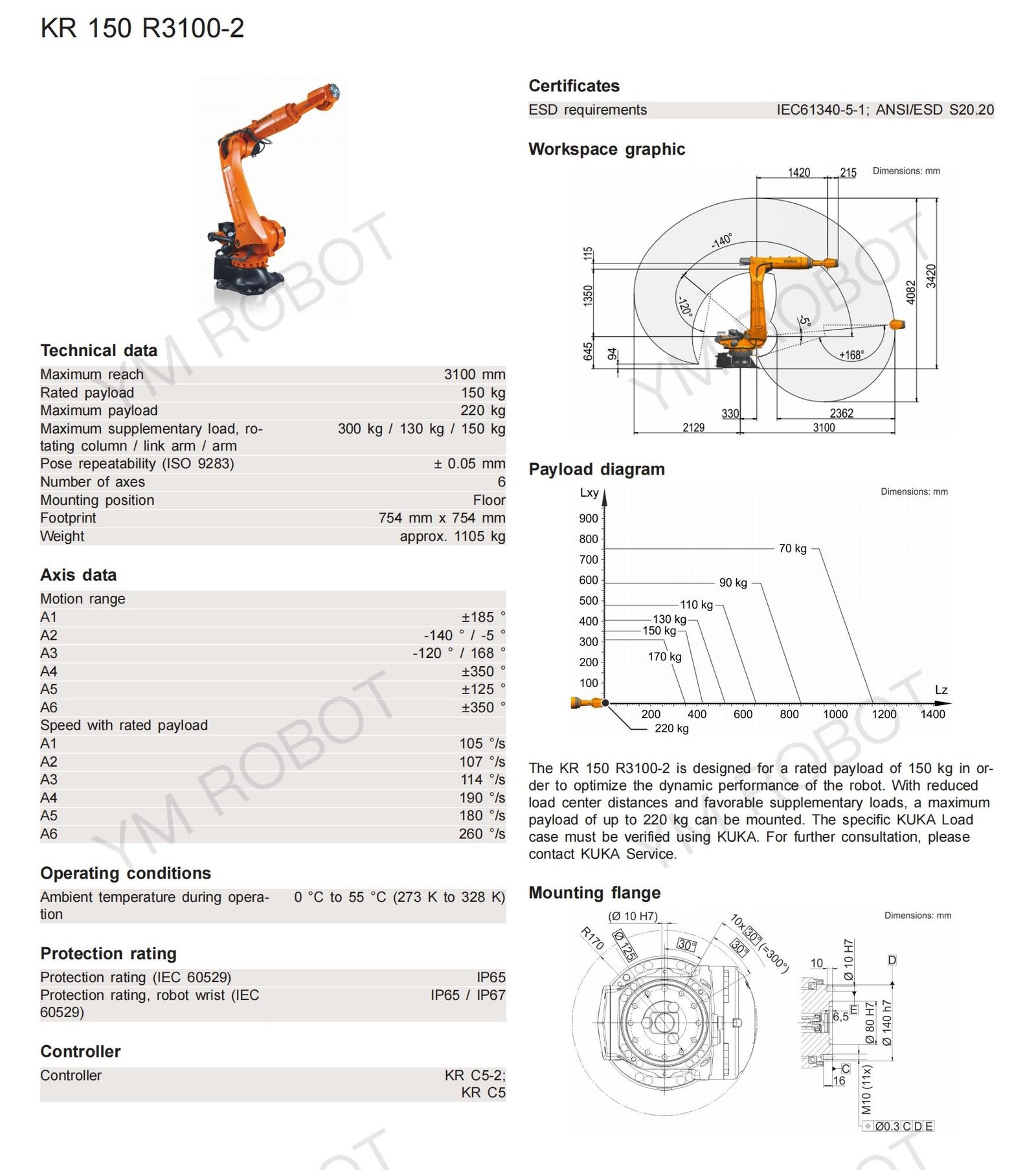

KUKA robot KR 150 R3100-2(2).jpg

Technical dataAxis data
Maximum reach3100 mmMotion rangeSpeed with rated payload
Rated payload150 kgA1±185 °A1105 °/s
Maximum payload220 kgA2-140 ° / -5 °A2107 °/s
Maximum supplementary load, rotating column / link arm / arm300kg/130kg/150kgA3-120 ° / 168 °A3114 °/s
Pose repeatability (ISO 9283)± 0.05 mmA4±350 °A4190 °/s
Number of axes6A5±125 °A5180 °/s
Mounting positionFloorA6±350 °A6260 °/s
Footprint754 mm x 754 mm
Weightapprox. 1105 kg
