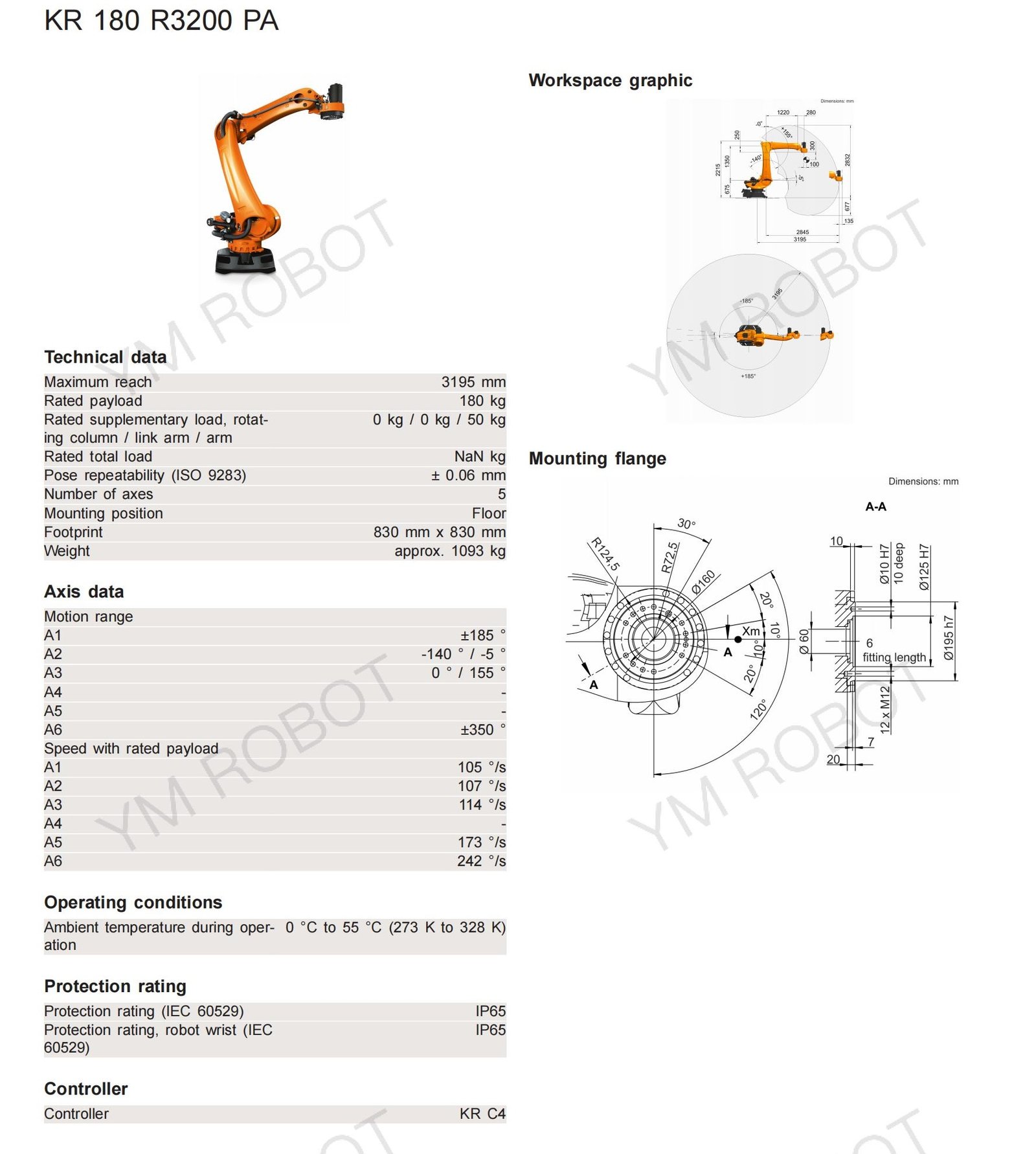

KR 180 R3200 PA
KR QUANTEC PA

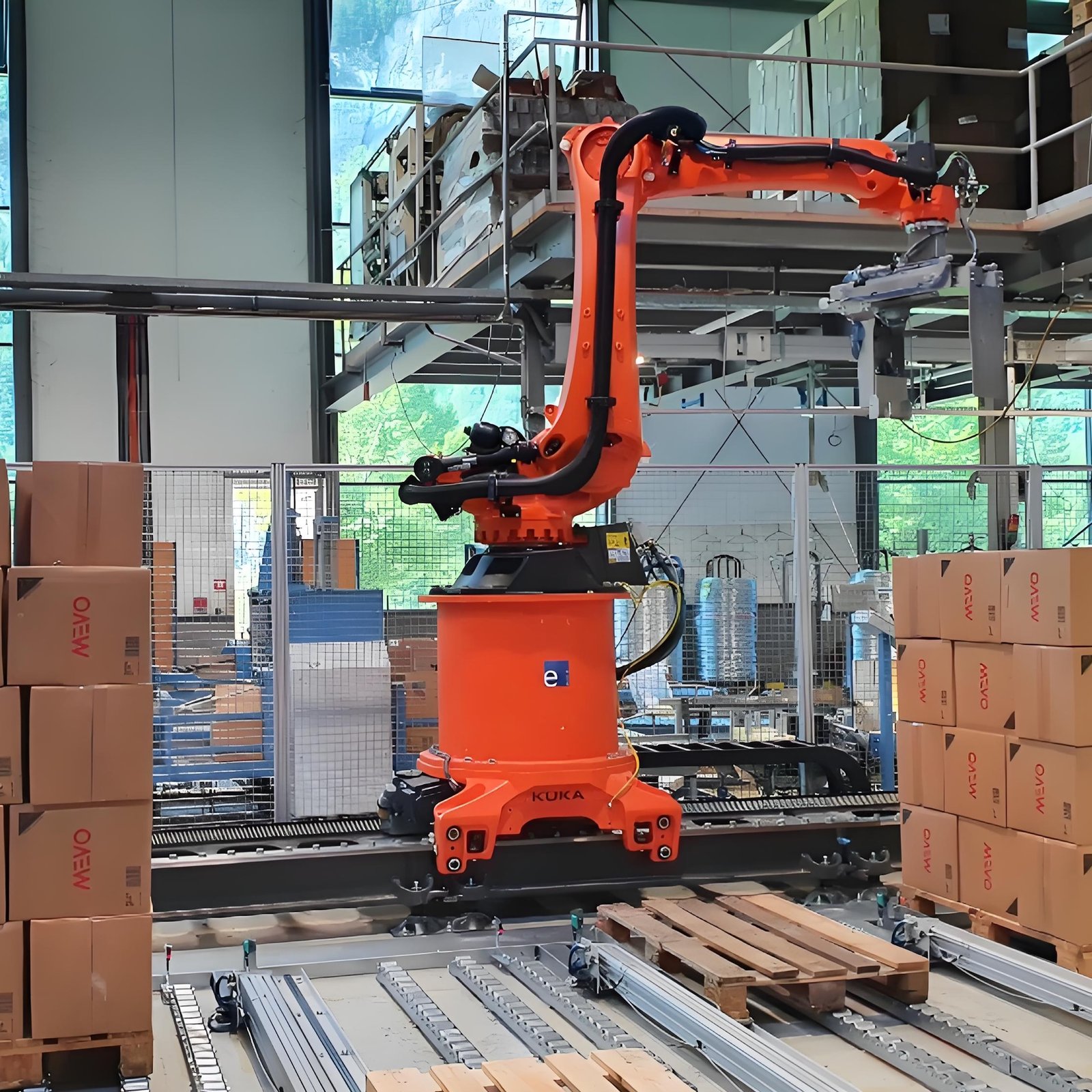

KR QUANTEC PA performs palletizing tasks quickly and accurately even in extremely cold temperatures. Thanks to its Arctic design, no protective clothing is required. Its resistance to temperatures well below zero makes it a professional palletizing device for the food industry. The KR QUANTEC PA Arctic can even operate with extremely high precision in extreme conditions down to -30 degrees Celsius. Its wide working range enables short turnaround times and high flexibility when stacking and placing items in cold environments.
| Technical data | Axis data | ||||
| Maximum reach | 3195 mm | Motion range | Speed with rated payload | ||
| Rated payload | 180 kg | A1 | ±185 ° | A1 | 105 °/s |
| Maximum payload | NaN kg | A2 | -140 ° / -5 ° | A2 | 107 °/s |
| Maximum supplementary load, rotating column / link arm / arm | 0 kg/0 kg/50 kg | A3 | 0 ° / 155 ° | A3 | 114 °/s |
| Pose repeatability (ISO 9283) | ± 0.06 mm | A4 | - | A4 | - |
| Number of axes | 5 | A5 | - | A5 | 173 °/s |
| Mounting position | Floor | A6 | ±350 ° | A6 | 242 °/s |
| Footprint | 830 mm x 830 mm | ||||
| Weight | approx. 1093 kg | ||||
