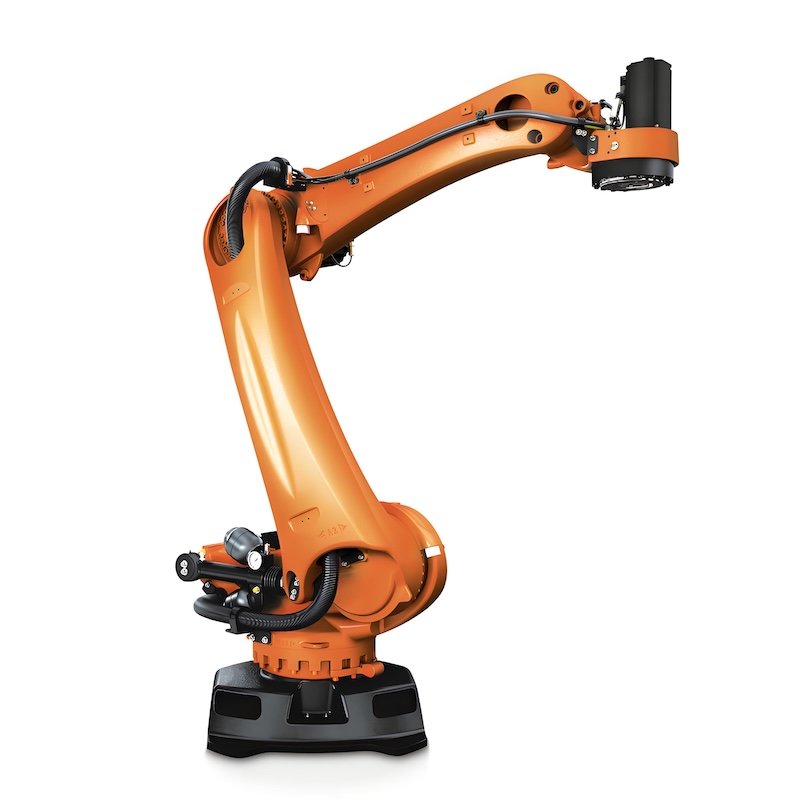

KR 120 R3200 PA
KR QUANTEC PA
Our KR QUANTEC PA series robots are the fastest, most powerful, and most precise palletizing robots on the market. Invest in an extremely compact design and superior process efficiency.
The KR QUANTEC PA series palletizing robots meet all current automation needs: small footprint, short cycle times, high availability, and low operating costs. With their slim design, these five-axis robots can achieve a stacking height of over 2,500 millimeters. The hollow shaft with a diameter of 60 millimeters enables safe energy supply wiring.

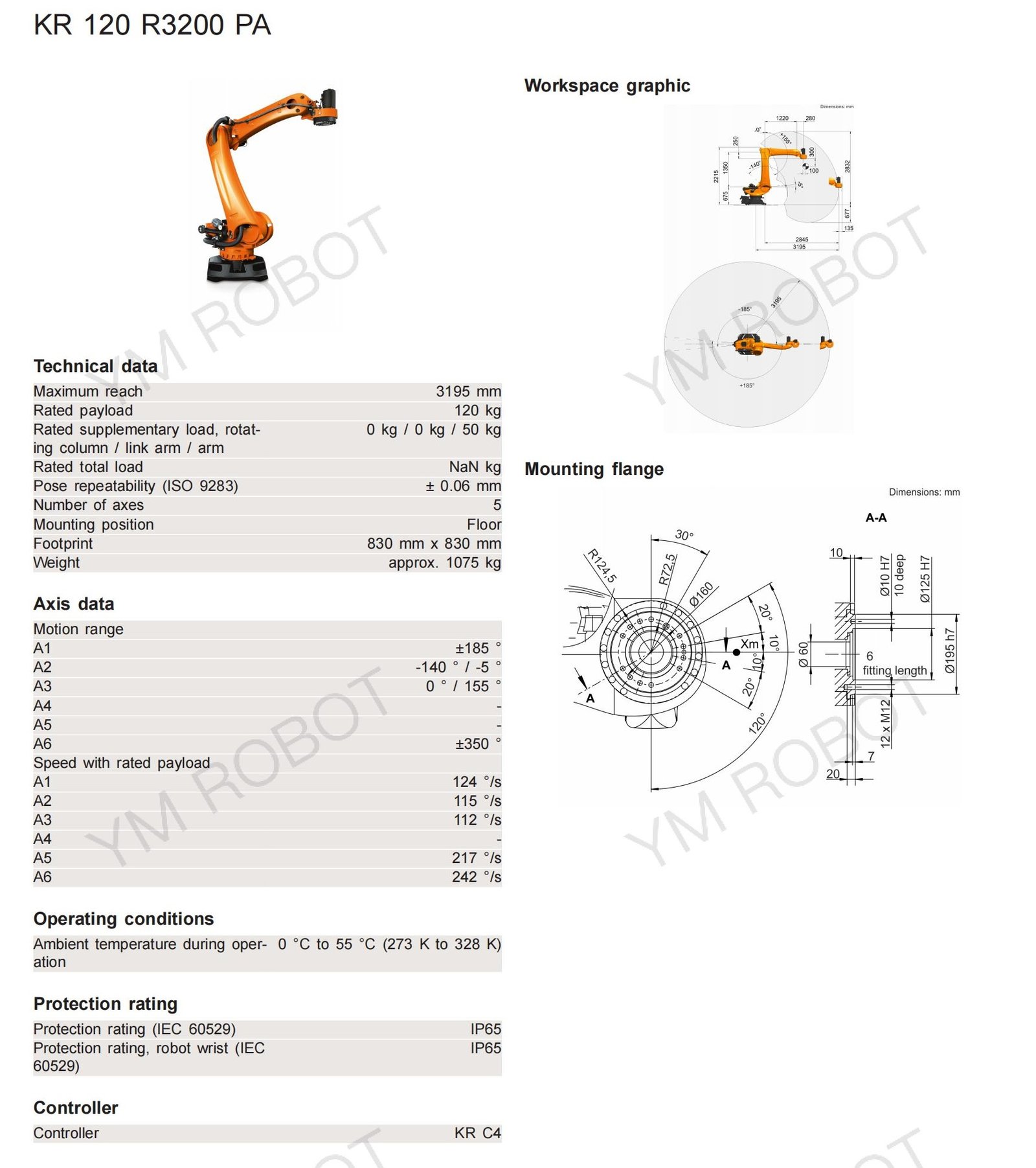

| Technical data | Axis data | ||||
| Maximum reach | 3195 mm | Motion range | Speed with rated payload | ||
| Rated payload | 120 kg | A1 | ±185 ° | A1 | 124 °/s |
| Maximum payload | NaN kg | A2 | -140 ° / -5 ° | A2 | 115 °/s |
| Maximum supplementary load, rotating column / link arm / arm | 0 kg/0 kg/50 kg | A3 | 0 ° / 155 ° | A3 | 112 °/s |
| Pose repeatability (ISO 9283) | ± 0.06 mm | A4 | - | A4 | - |
| Number of axes | 5 | A5 | - | A5 | 217 °/s |
| Mounting position | Floor | A6 | ±350 ° | A6 | 242 °/s |
| Footprint | 830 mm x 830 mm | ||||
| Weight | approx. 1075 kg | ||||
