GP50

Short Description:

YASKAWA Robot GP50 Payload 50 kg Reaching Distance 2061 mm...


  • Brand: YASKAWA
  • Model: GP50
  • Payload: 50kg
  • Arm Reach: 2061 mm
  • Accuracy: ± 0.03 mm
  • Controlled Axes: 6
  • Weight: 570 kg
  • Payment: T/T
  • Lead Time: 4-6 weeks

Product Detail

Product Tags

The MOTOMAN GP50 is a highly versatile 6-axis industrial robot with a 50 kg payload capacity, a 2.061 mm working radius, and excellent repeatability of ±0.03 mm.

The GP50 robot offers a perfectly matched combination of payload, speed, and wrist torque, achieving superior speed and acceleration performance. Its compact footprint and slim robotic arm design minimize installation space requirements and effectively reduce interference with surrounding equipment.

A version with a high protection rating of IP65/67 (dustproof and waterproof) is available for operation in harsh environments.

The GP50 is suitable for a variety of applications, including machine monitoring, material handling, material removal, assembly, additive manufacturing, dispensing, and grinding/polishing.

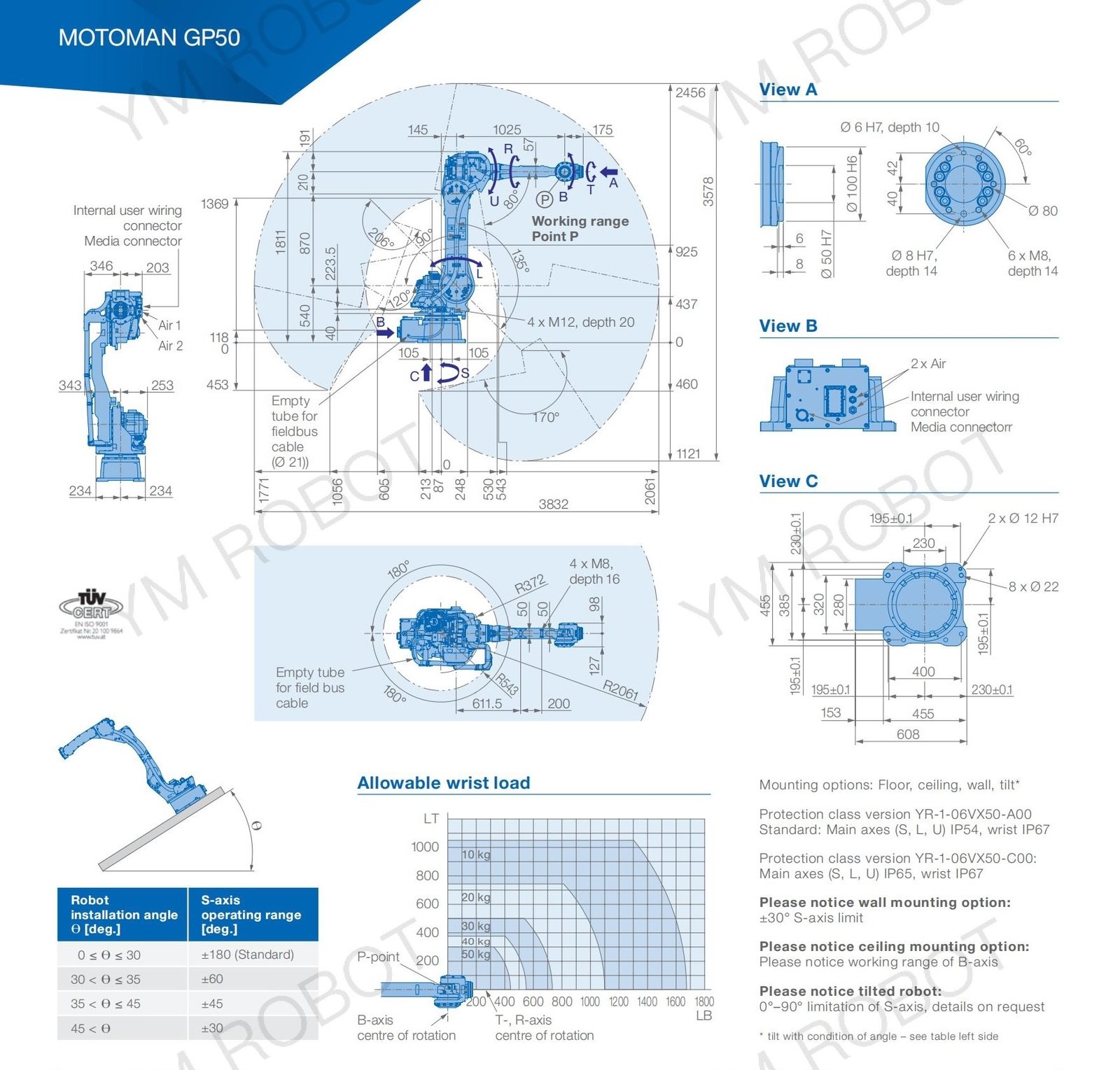

YASKAWA robot GP50(1).jpg

Specifications GP50
AxesMaximum motion range[°]Maximum speed[°/s]Allowable moment[Nm]Allowable moment of inertia[kg ·]Controlled axes6
Max. payload [kg]50
S±180180--Repeatability [mm]±0.03
L+135/-90178--Max. working range R [mm]2061
U+206/-80178--Temperature [°C]0 to +45
R±36025021628Humidity [%]20 - 80
B±12525021628Weight [kg]570
T±36036014711Max. connected load [kVA]4.0
