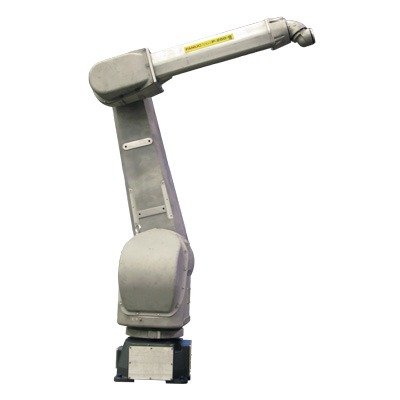

FANUC Robot P-250iB is a large size paint robot with 15kg payload capacity.

●Long reach of 2800mm,variety of mounting types,and right or left side of offset arm enable flexible layout and compact spraybooth.

●The ability to integrate process components in the inner arm in close proximity to the applicator can reduce required cleaning time and amount of wasted paint materials at the time of color change.

●Auxiliary motors for paint process are integrated in the outer arm.(Option,maximum 2 axes)

●Offset hollow wrist structure offers easy integration of process hoses and enables entering into narrow space to paint.

●Adequate load capacity at wrist supports a variety size of applicators.
