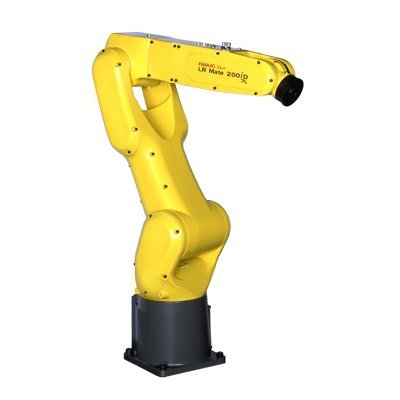

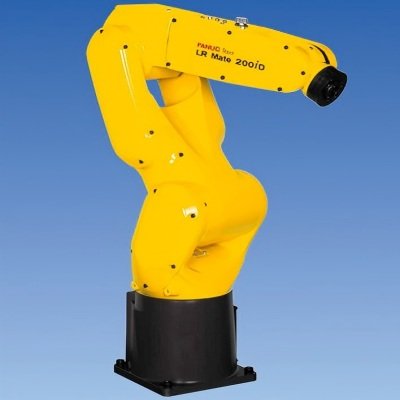

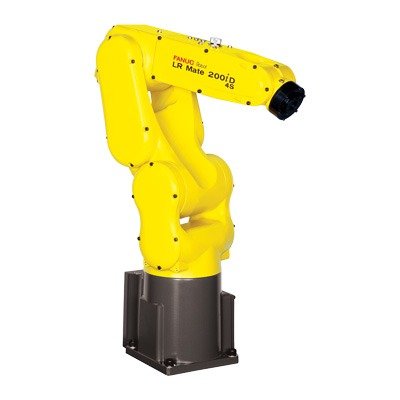

LR Mate 200iD is a human arm sized mini robot.

●The slim arm minimizes interference to peripheralequipment at narrow space.

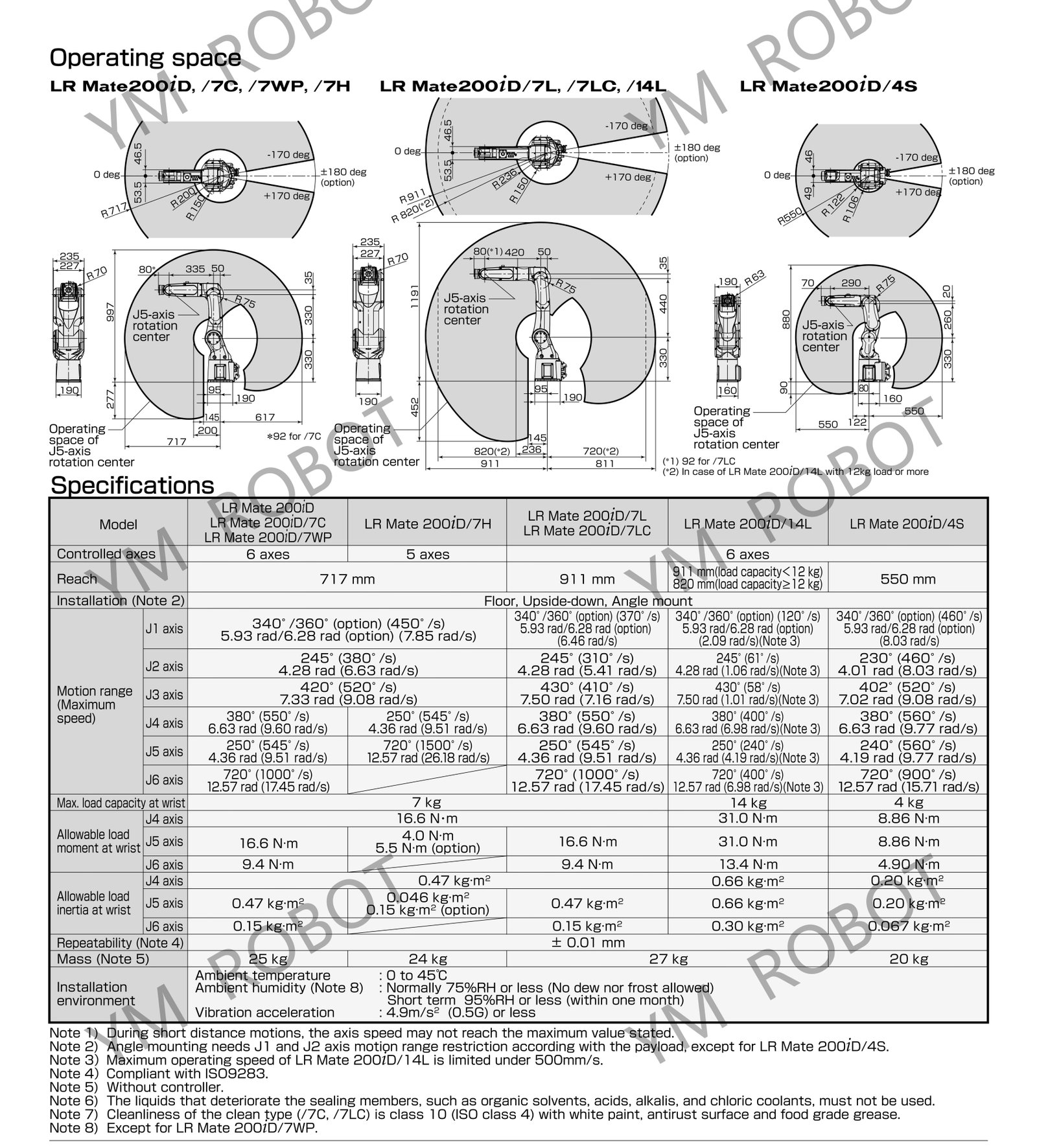

●Standard arm(717mm reach), short arm (550mm reach),long arm(911mm reach), clean type, water-proof typefor washing and 5 axes high speed type are available.

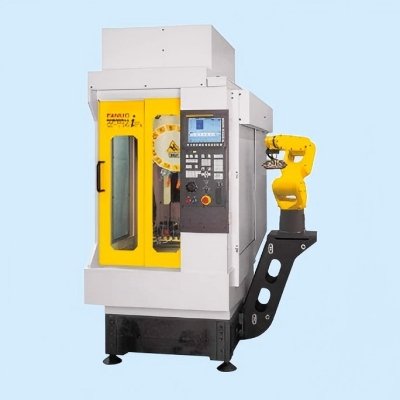

●The lightest mechanical unit in its class realizes easyintegration into a machine or upside-down mounting ona frame.

●High rigidity arm and the most advanced servotechnology enable smooth motion without vibration inhigh speed operation.

●Wrist load capacity is enhanced extremely. lt makesefficiency to increase by handling plural work pieces.

●Sensor cable,auxiliary axis cable, solenoid valve, airtube and l/0 cable for device control are integrated inthe arm.lt realizes easy hand cabling.(option for limitedmodel)

●Dust and water proof ability is enhanced to lP69K formechanical unit. lt expands various application.(optionfor limited model)

●Various intelligent functions are available as optionsuch as “robot link"that synchronizes plural robotsoperation, “soft float" that enables the hand to followthe work piece and “collision detection" that minimizesdamage by interference to peripheral equipment.

●Advanced intelligent functions are available as anoption, such as iRVision(integrated vision)and partinsertion by force sensor
