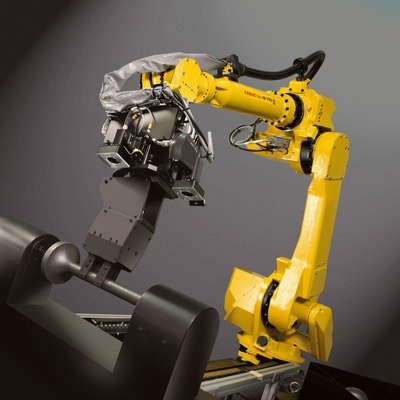

FANUC Robot M-710ic is a medium payload handling robotseries with the capacity of 12kg-70kg.

Featuring a slim wrist, rigid arm and small footprint, M-710 Series robots are suitable for a wide range of applications and come with a reach of up to 3.1 m. High axis speeds make this series extremely fast. They also boast excellent payload capacities and inertia – With a vast array of models available, the FANUC M-710 Series is capable of covering a diverse range of industries.

●Eight models are available to meet a variety of applications.

-FANUC Robot M-710ic/45M,/50./70Wide motion envelop and large wrist load capacity areenough to handle a large panel.

M-710ic/45M:Payload capacity 45kgM-710ic/50 :Payload capacity 5OkgM-710ic/70 :Payload capacity 7Okg

-FANUC Robot M-710ic/50SThis model has a compact body suitable for narrow areaoperation.(Payload capacity 50kg)

-FANUC Robot M-710ic/12L,/20L,/20MLong reach and high motion performance are suitable forvarious applications,such as handling,sealing and arcwelding.

M-710ic/12L:Payload capacity 12kg(Holow wrist)

M-710ic/20L:Payload capacity 20kg

M-710ic/20M:Payload capacity 20kg

-FANUC Robot M-710ic/5OHThis model is a 5 axes type robot that corresponds to thehigh speed transferring.The ceiling mount realizes acompact handling system.(Payload capacity 50kg)

●The full cover realizes IP67-equivalent resistance to severe

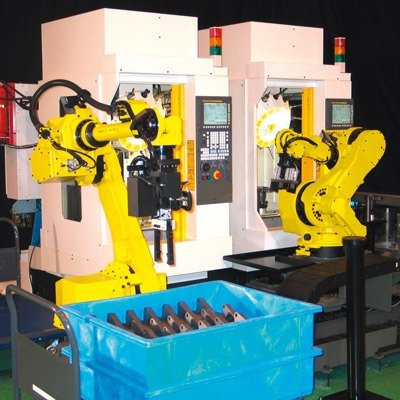

environmental conditions(dust and dips).It's reliable invarious applications,such as load/unload for machinedparts,de-burring and die cast loading.
