The extended working radius further enhances the reach and productivity of collaborative automation, enabling it to handle more demanding and heavier-load applications.

Packaging and Palletizing

When picking, packaging, and palletizing heavy components, the UR20 helps customers boost efficiency and productivity. Its working range accommodates standard Euro pallets, with stacking heights reaching up to 2 meters.

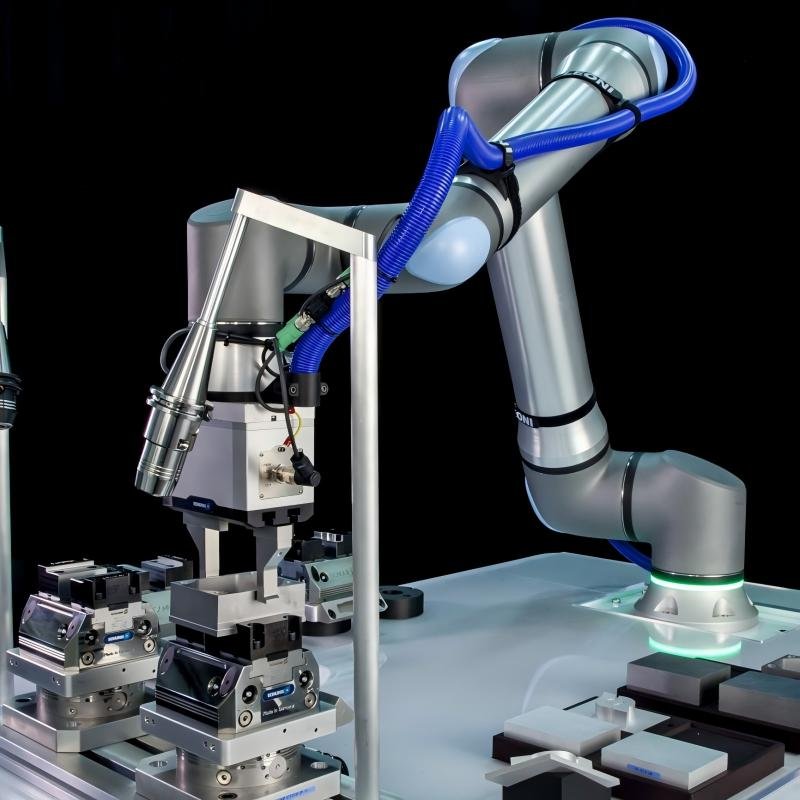

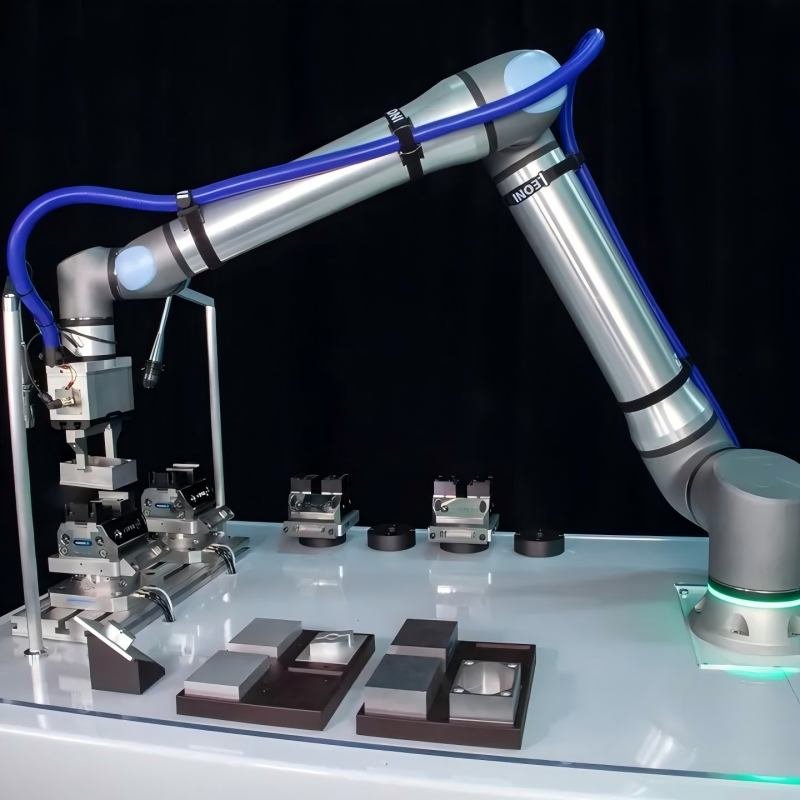

Machine Tending

The UR20 enables flexible processing of various large components, including cutting, punching, drilling, machining, and forming. It can be mounted in any position and moves flexibly around workplace equipment such as machine guarding doors.

The UR20's software has been completely redesigned, delivering unprecedented motion control capabilities for its articulated structure. It achieves a 65% increase in speed and a 25% increase in torque within confined spaces.

Performance Elevated to New Heights

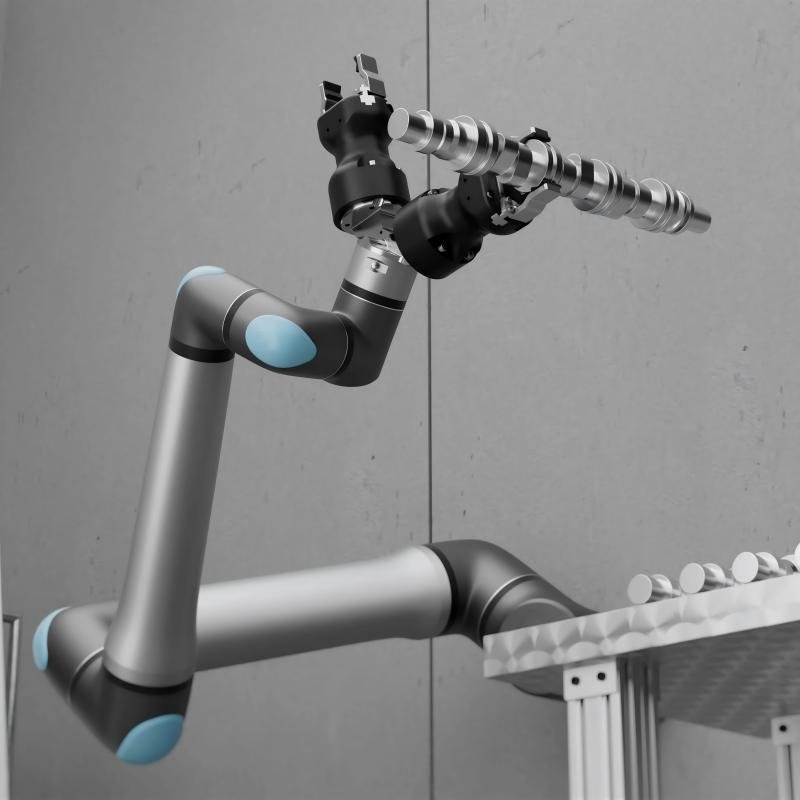

Part Handling and Assembly

The increased payload capacity allows handling heavier workpieces, with the option to mount two or more end effectors for shorter cycle times. Manufacturing and assembly of large equipment like diesel engines, transmission systems, gearboxes, and battery packs often require human-robot collaboration.

Welding

For parts and assemblies with long weld seams, the UR20's compact footprint allows multiple robots to operate within the same production cell. The new joint structure enhances motion consistency, while the 1750 mm working radius expands your operational area.
